Model:S1040/S1080/S1160
Features:
● Support maximum 4 / 8 /16 multiple screens video wall
● Up to UHD 4K*2K resolution at 30Hz
● Up to 15M transmission distance
● Support video and audio outputs simultaneously
● Fine design metallic housing, excellent ventilation,
● Ultra clear pictures and video presentation without signal loss
● Smooth transmission without delay
● HDCP2.2/1.4 Compliant
● Plug and play, easy to use
● Support multiple splitters cascade
● Suitable for feeding signal to monitors, televisions and projectors, etc
Features

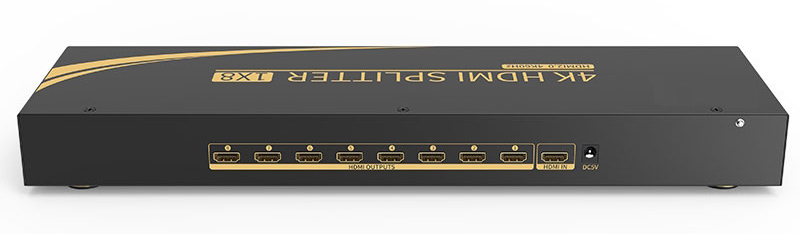

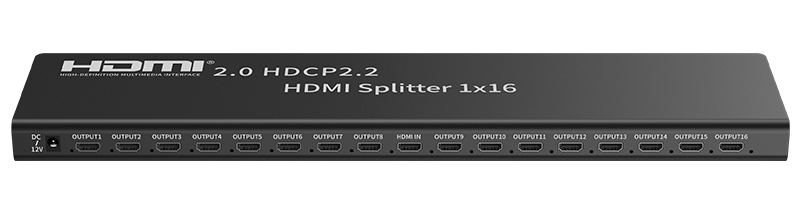

4K HDMI 2.0 1x4/8/16 HDMI Splitter for professional seamless LCD video walls
Features:
● Support maximum 4 / 8 /16 multiple screens video wall
● Up to UHD 4K*2K resolution at 30Hz
● Up to 15M transmission distance
● Support audio format:
DTS-HD/Dolby-trueHD/LPCM7.1/DTS/DOLBY-AC3/DSD
● Support video and audio outputs simultaneously
● Fine design metallic housing, excellent ventilation,
● Ultra clear pictures and video presentation without signal loss
● Smooth transmission without delay
● HDCP2.2/1.4 Compliant
● Plug and play, easy to use
● Support multiple splitters cascade
● Highly reliable and longer lifetime
● Suitable for feeding signal to monitors, televisions and projectors, etc
Packing list
l 1 x HDMI Splitter
l 1 x 5V/1A or 5V/2A or 12V/2A DC Adapter
l 1 x User Manual
Specifications
Technical Parameters: | |||
Model | S1040 | S1080 | S1160 |
Product Name | 4K HDMI Splitter | ||
Video Input Connectors | 1* HDMI input | 1* HDMI input | 1* HDMI input |
Video Output Connectors | 4* HDMI ouput | 8* HDMI ouput | 16* HDMI ouput |
HDMI Input/Output Resolution | Up to 4K at 30 Hz | ||
HDMI video format | 1080p/ 1080i/ 720p/ 576p/576i 480p/480i at 60Hz/50Hz/24Hz; 3840*21060 at 30Hz | ||
Max. HDMI Baud Rate | 10.2 Gbps at 300 Hz | 18 Gbps at 600 Hz | |
Input/Output TMDS Signal | 0.5~1.5Vp-p (TTL) | ||
Input/Output DDC Signal | 5Vp-p (TTL) | ||
HDMI Input/output cable distance | maximum15M over AWG 24 HDMI Cable | maximum 5M over AWG 26 HDMI Cable | |
Power Adapter | DC 5V, 1A | DC5V, 2A | DC12V, 2A |
Operating Temperature | Minus 0°C to 50°C | ||
Storage Temperature | Minus 10°C to 60°C | ||
Operating Humidity | 5%~85% at no condensing | ||
Dimensions | L178XW66XH27mm | L430XW118XH44mm | L480XW160XH26mm |
Download
Download:4K 2.0.pdf
