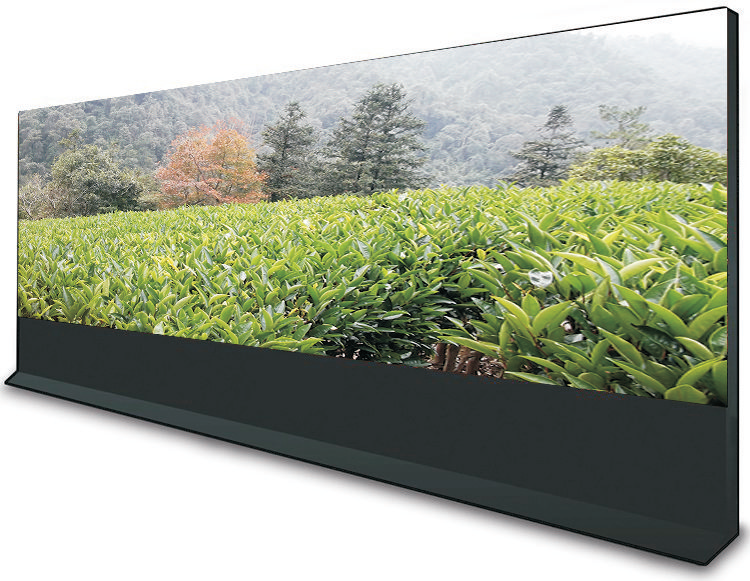

Zero Bezel Seamless Video Wall

The zero bezel seamless LCD video wall display was invented by Fultape in earlier 2012. It is world’s

first true 0  mm bezel seamless video wall in the world.

The zero bezel seamless LCD video wall is a great revolutionary technology innovation and invention

that brings the first zero mm screen-to screen gap super large LCD video wall display to life for various

kinds of professional and industrial applications in the world.

The width of the bezel is 0~0.01mm, less than one-sixth of the width of human hair. There is no any

screen-to-screen gap visible when watching the large zero bezel seamless LCD video wall just 3 meters

away. The maximum tile configuration of the zero bezel seamless LCD video wall is up to 10x10.

Overview

www.fultape.com

5x3 55Inch Zero Bezel Video Wall

Page 1 of 12

Zero Bezel Video Wall

www.fultape.com

Super Narrow Bezel Video Wall

3.5~6.3mm big bap between screens

Black Bezel

0~0.01mm Screen-to-Screen Gap

No Black Bezel

Page 2 of 12

How does Zero Bezel work?

Optical zero bezel seamless plate

The key technology of the Zero Bezel Video Wall is the state of the art optical zero bezel seamless

technology. It is invented by Fultape engineers in 2012. With years’ continuous development, it has

reached perfect effect that can create only 0 ~0.01mm physical screen-to-screen gap video wall

without image and text distortion in 2015. The Zero Bezel effect is achieved by the optical zero bezel

seamless plate fixed on the front of the LCD panel.

There is no same or similar products in the world so far. We are the only maker of the Zero Bezel

Video Wall Display.

0~0.01mm screen-to-screen gap

3.5~6.3mm screen-to-screen gap

Screen-to-screen gap comparison

Screen-to-screen gap of ultra-slim/super narrow bezel LCD video wall

Screen-to-screen gap of the zero bezel seamless LCD video wall

Page 3 of 12

www.fultape.com

Watching Effect Comparision

Zero Bezel Video Wall

Old Super Narrow Bezel Video Wall

Front view ( 2x2 W4600S video wall ) Side view

Total screen-to-screen gap

0~0.01mm

Page 4 of 12

www.fultape.com

Watching Effect Comparision

Zero Bezel Video Wall 4x3

Old Super Narrow Bezel Video Wall 4x3

Page 5 of 12

www.fultape.com

Zero Bezel Video Wall 2x2, 46Inch

3840

2160

1080

1 920

4K Zero Bezel Video Wall Display

2x2 Zero Bezel Video Wall

2x2 Zero Bezel Video Wall ,46Inch

46Inch Zero Bezel

Video Wall Unit Screen

Page 6 of 12

www.fultape.com

2x2 Zero Bezel Video Wall

2x2 Zero Bezel Video Wall ,55Inch

55Inch Zero Bezel

Video Wall Unit Screen

Features of Zero Bezel Video Wall

Page 7 of 12

www.fultape.com

◇ Zero bezel,No gaps visible, 100% active area

◇ 4K and full HD , 700 to 2000 nits super high brightness

◇ Extremely perfect video quality

◇ LED backlight, energy-saving

◇ PIP &POP, Daisy chaining solution

◇ Audio out plus USB plug and play

◇ Landscape or portrait installation

◇ Ultra-light weight design, easy installation

◇ Up to 10*10 tile configuration

◇ Over MTBF 60,000 hours above lifespan

7x24 hours continuous working

◇ Longer lifetime, MTBF 60,000 hours above

Model W4600S W4600SA

Panel size 46" Samsung LCD. LED backlight, 46" Samsung LCD. LED backlight,

Right, bottom: 0 mm Right, bottom: 0 mm

Left, top:0 mm Left, top:0 mm

Bezel width in total: 0 mm Bezel width in total: 0 mm

Colors 16.7M 16.7M

Resolution 1920x1080 1920x1080

Pixel Pitch 0.530×0.530mm 0.530×0.530mm

Brightness 450cd/m² 500cd/m²

Contrast Ratio 3500:1 3500:1

View angle 178°/140°;120°/120° 178°/140°;120°/120°

Response time 8ms 8ms

Material of housing

Color of housing

Systems

Operation method

SATA interface (Control signal)

SATA loop-out(Control signal)

OSD languages

HDMI input

DVI input

VGA input

AV input

AV output

Frequency

Power supply

Power consumption

Standby power consumption

Operation temperature

Storage temperature

Operation & Storage humidity

Installation methods

Dimension of unit screen 1024*578.57*139.2mm

(Not including wall-mount brackets)

1021.98*576.57*139.2mm

(Not including wall-mount brackets)

Net Weight of unit screen 30.3kg 29.0kg

1xBNC (CVBS /Videoin)

1xBNC (CVBS/Video out)

50Hz, 60Hz ,70Hz

Wall-mount,standing (floor standing)

AC100~240V,50/60Hz

0℃~50℃

Minus 20℃~+60℃

20%~80%

≤200W

3W

Chinese, English, multi-languages optional

1xHDMI

1xDVI

1xVGA(D--SUB　15PIN)

PAL/NTSC/SECAM

Remote control optional

RS232 (RJ45-8)

RS232 (RJ45-8)

Bezel width

Metal

Black

Specifications of 46 inch Zero Gap Video Wall

www.fultape.com

Page 8 of 12

Model W4600SH W4600SAH

Panel size 46" Samsung LCD. LED backlight, 46" Samsung LCD. LED backlight,

Right, bottom: 0 mm Right, bottom: 0 mm

Left, top:0 mm Left, top:0 mm

Bezel width in total: 0 mm Bezel width in total: 0 mm

Colors 16.7M 16.7M

Resolution 1920x1080 1920x1080

Pixel Pitch 0.530×0.530mm 0.530×0.530mm

Brightness 700cd/m² 700cd/m²

Contrast Ratio 3500:1 3500:1

View angle 178°/140°;120°/120° 178°/140°;120°/120°

Response time 8ms 8ms

Material of housing

Color of housing

Systems

Operation method

SATA interface (Control signal)

SATA loop-out(Control signal)

OSD languages

HDMI input

DVI input

VGA input

AV input

AV output

Frequency

Power supply

Power consumption

Standby power consumption

Operation temperature

Storage temperature

Operation & Storage humidity

Installation methods

Dimension of unit screen 1024*578.57*139.2mm

(Not including wall-mount brackets)

1021.98*576.57*139.2mm

(Not including wall-mount brackets)

Net Weight of unit screen 30.3kg 29.0kg

Bezel width

Metal

Black

PAL/NTSC/SECAM

Remote control optional

RS232 (RJ45-8)

RS232 (RJ45-8)

Chinese, English, multi-languages optional

1xHDMI

1xDVI

1xVGA(D--SUB　15PIN)

1xBNC (CVBS /Videoin)

1xBNC (CVBS/Video out)

50Hz, 60Hz ,70Hz

Wall-mount,standing (floor standing)

AC100~240V,50/60Hz

0℃~50℃

Minus 20℃~+60℃

20%~80%

≤220W

3W

Specifications of 46 inch Zero Gap Video Wall

www.fultape.com

Page 9 of 12

Model W5500S W5500Z

Panel size 55" LG LCD. LED backlight 55" Samsung LCD. LED backlight

Right, bottom: 0 mm Right, bottom: 0 mm

Left, top:0 mm Left, top:0 mm

Bezel width in total: 0 mm Bezel width in total: 0 mm

Colors 16.7M 16.7M

Resolution 1920x1080 1920x1080

Pixel Pitch 0.63×0.63mm 0.63×0.63mm

Brightness 500cd/m² 500cd/m²

Contrast Ratio 1400:1 3500:1

View angle 178°/140°;120°/120° 178°/140°;120°/120°

Response time 8 ms 8 ms

Material of housing

Color of housing

Systems

Operation method

SATA interface (Control signal)

SATA loop-out(Control signal)

OSD languages

HDMI input

DVI input

VGA input

AV input

AV output

Frequency

Power supply

Power consumption ≤250W ≤250W

Standby power consumption 3W 3W

Operation temperature

Storage temperature

Operation & Storage humidity

Installation methods

Dimension of unit screen 1213.5*684.2*131.5mm

(Not including wall-mount brackets)

1213.5*684.3*135.5mm

(Not including wall-mount brackets)

Net Weight of unit screen 38.0kg 41.0kg

Bezel width

Metal

Black

PAL/NTSC/SECAM

Remote control optional

RS232 (RJ45-8)

RS232 (RJ45-8)

Chinese, English, multi-languages optional

1xHDMI

1xDVI

1xVGA(D--SUB　15PIN)

1xBNC (CVBS /Videoin)

1xBNC (CVBS/Video out)

50Hz, 60Hz ,70Hz

Wall-mount,standing (floor standing)

AC100~240V,50/60Hz

0℃~50℃

Minus 20℃~+60℃

20%~80%

Specifications of 55 inch Zero Gap Video Wall

www.fultape.com

Page 10 of 12

Project case

For more pictures or videos, just visit www.fultape.com and/or email us.

The Zero Bezel Video Wall can not only be widely used for professional purposes, such as, entertainment,

TV show, event production, security surveillance, exhibition, control room, conference, advertisement,

multi-media classroom in universities and schools and worship houses in churches and other

applications, but also for home use like home theaters, home cinema, etc..
