Model:R3 Series
R3 Series Rental LED screens features
● 4000:1 ultra high contrast ratio
● High color and brightness uniformity
● Finest vivid picture, but eye-care
● 160(H)/120(V) degrees wide view angle,
● Front accessible cabinet, easy to maintain
● Ultra-quiet Fanless design, no noise,
● ultra thin die cast aluminum cabinet, 75mm thickness
● CE,FCC and Rosh certified, 10,000 hours lifetime
Features
Professional Rental LED Displays Screens manufacturer factory
R3 series 500x1000 ultra thin light weight rental LED displays screens
Fultape indoor outdoor rental LED display is specially designed for event, stage, broadcast and entertainment use. It is made of die casting aluminum cabinet and high quality electronic parts. It can be used both outdoor and indoor, even under strong sunlight conditions. It enjoys lots of advantages: high brightness, high contrast ratio, high refresh rate, automatic brightness and color uniformity calibration and ultra-thin and light weight, only 75mm thickness and 7.8kg net weight, which make it become the best option among many rental LED displays in the world market.
We have been the leader of rental LED displays screens in the industry and will continue to develop, produce and supply highest quality rental LED display for professional visual application market home and abroad as what Fultape has been done. We use superior quality raw materials to produce each modules and each cabinet of indoor outdoor LED video wall displays screens. All Fultape rental LED display pass 48 to 72 hours burn-in test and 100% final strict test and inspection before shipping to ensure high quality of all Fultape rental LED displays, stable, reliable and durable.
Rental indoor LED displays features
● 4000:1 ultra high contrast ratio
● High color and brightness uniformity
● Finest vivid picture, but eye-care when watching a long time
● 160(H)/120(V) degrees wide view angle,
● Front accessible cabinet, easy to maintain
● Ultra-quiet Fanless design, no noise,
● Advanced sophisticated structure design brings excellent ventilation
● ultra thin die cast aluminum cabinet, 75mm thickness
● CE,FCC and Rosh certified, 10,000 hours lifetime
Rental indoor LED displays technical specifications
Who we are?
Fultape Electronics Co., Limited has been specializing in manufacturing superior quality Rental LED video wall display screens, Outdoor indoor rental LED displays screens and led display screens rental for many years. As one of leading exporter and wholesaler of rental LED displays screens and rental LED video wall displays screens, our LED video wall display screens cover a wide variety, including rental led displays, rental LED screens, LED video wall rental, event screen rental, LED signs, Led message signs, Led displays, LED screens, electronic billboards, digital billboards, outdoor LED display screens and indoor LED display screens, LED video wall displays, pharmacy cross signs, large outdoor led video screens, led curtains displays for stages, events, concerts and building wall decoration.
Our Rental LED video wall displays screens are ideal for live broadcasts, events, stage, stadium and shopping centers/shopping malls. They feature high brightness, high contrast ratio, high refresh rate, high grey scale, ultra slim and light weight and 160 degrees wide view angle.
Our Rental Outdoor indoor LED displays screens have been exported all over the world and installed worldwide by hundreds of our long term partners, distributors, wholesalers, integrators and installers.
Any enquires on our Rental led video wall, rental led display screens and indoor outdoor LED video display rental, just email us at overseas@fultaple.com. We will get back to you within 24 hours. For urgent order, contact us via skype, whatsapp, wechat and telephone.
Whatsapp/wechat: 0086 139 2377 0161 skype is fultape01. Direct line Telephone 0086 755 2350 0200
Specifications

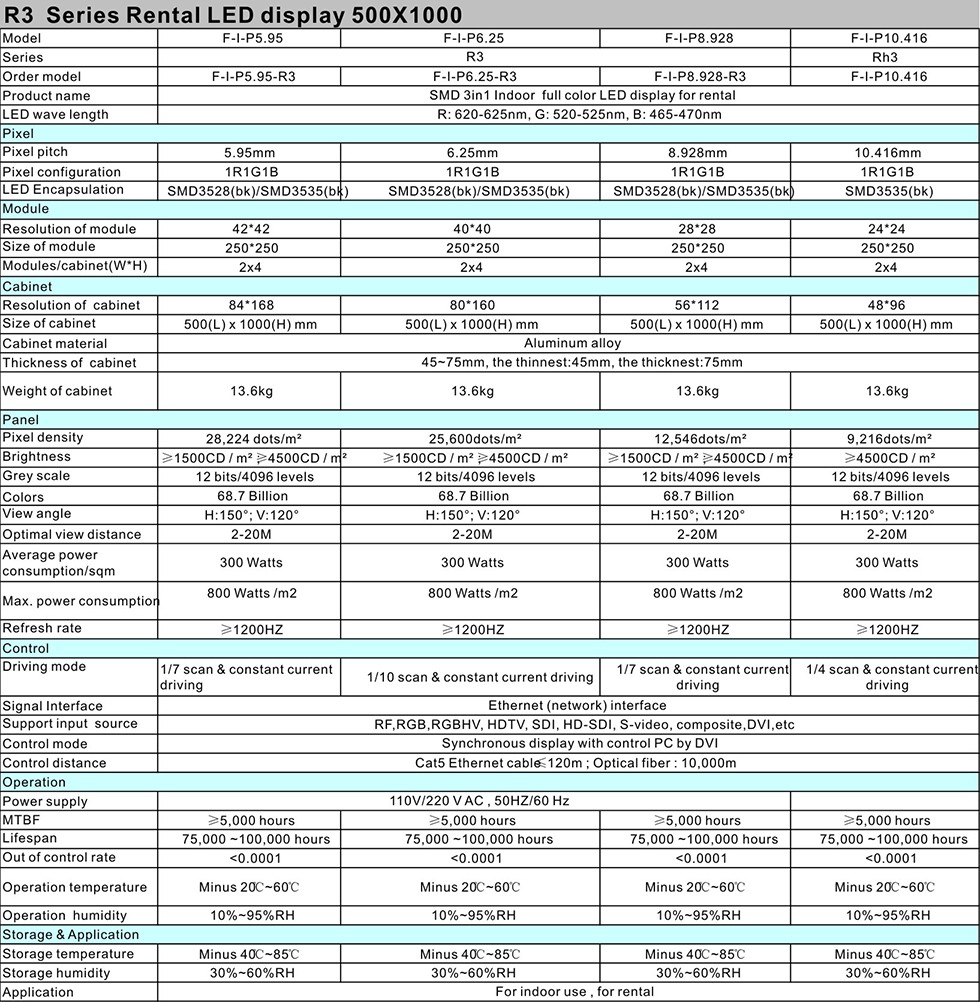

Rental indoor LED displays technical specifications
| R3 Series Rental LED display 500X1000 | ||||
| Model | F-I-P5.95 | F-I-P6.25 | F-I-P8.928 | F-I-P10.416 |
| Series | R3 | RH3 | ||
| Order model | F-I-P5.95-R3 | F-I-P6.25-R3 | F-I-P8.928-R3 | F-I-P10.416 |
| Product name | SMD 3in1 Indoor full color LED display for rental | |||
| LED wave length | R: 620-625nm, G: 520-525nm, B: 465-470nm | |||
| Pixel | ||||
| Pixel pitch | 5.95mm | 6.25mm | 8.928mm | 10.416mm |
| Pixel configuration | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B |
| LED Encapsulation | SMD3528(bk)/SMD3535(bk) | SMD3528(bk)/SMD3535(bk) | SMD3528(bk)/SMD3535(bk) | SMD3535(bk) |
| Module | ||||
| Resolution of module | 42*42 | 40*40 | 28*28 | 24*24 |
| Size of module | 250*250 | 250*250 | 250*250 | 250*250 |
| Modules/cabinet(W*H) | 2x4 | 2x4 | 2x4 | 2x4 |
| Cabinet | ||||
| Resolution of cabinet | 84*168 | 80*160 | 56*112 | 48*96 |
| Size of cabinet | 500(L) x 1000(H) mm | 500(L) x 1000(H) mm | 500(L) x 1000(H) mm | 500(L) x 1000(H) mm |
| Cabinet material | Aluminum alloy | |||
| Thickness of cabinet | 45~75mm, the thinnest:45mm, the thicknest:75mm | |||
| Weight of cabinet | 13.6kg | 13.6kg | 13.6kg | 13.6kg |
| Panel | ||||
| Pixel density | 28,224 dots/m² | 25,600dots/m² | 12,546dots/m² | 9,216dots/m² |
| Brightness | ≥1500CD / m² ;≥4500CD / m² | ≥1500CD / m² ;≥4500CD / m² | ≥1500CD / m² ;≥4500CD / m² | ≥4500CD / m² |
| Grey scale | 12 bits/4096 levels | 12 bits/4096 levels | 12 bits/4096 levels | 12 bits/4096 levels |
| Colors | 68.7 Billion | 68.7 Billion | 68.7 Billion | 68.7 Billion |
| View angle | H:150°; V:120° | H:150°; V:120° | H:150°; V:120° | H:150°; V:120° |
| Optimal view distance | 2-20M | 2-20M | 2-20M | 2-20M |
| Average power consumption/sqm | 300 Watts | 300 Watts | 300 Watts | 300 Watts |
| Max. power consumption | 800 Watts /m2 | 800 Watts /m2 | 800 Watts /m2 | 800 Watts /m2 |
| Refresh rate | ≥1200HZ | ≥1200HZ | ≥1200HZ | ≥1200HZ |
| Control | ||||
| Driving mode | 1/7 scan & constant current driving | 1/10 scan & constant current driving | 1/7 scan & constant current driving | 1/4 scan & constant current driving |
| Signal Interface | Ethernet (network) interface | |||
| Support input source | RF,RGB,RGBHV, HDTV, SDI, HD-SDI, S-video, composite,DVI,etc | |||
| Control mode | Synchronous display with control PC by DVI | |||
| Control distance | Cat5 Ethernet cable ≤120m ; Optical fiber : 10,000m | |||
| Operation | ||||
| Power supply | 110V/220 V AC , 50HZ/60 Hz | |||
| MTBF | ≥5,000 hours | ≥5,000 hours | ≥5,000 hours | ≥5,000 hours |
| Lifespan | 75,000 ~100,000 hours | 75,000 ~100,000 hours | 75,000 ~100,000 hours | 75,000 ~100,000 hours |
| Out of control rate | <0.0001 | <0.0001 | <0.0001 | <0.0001 |
| Operation temperature | Minus 20℃~60℃ | Minus 20℃~60℃ | Minus 20℃~60℃ | Minus 20℃~60℃ |
| Operation humidity | 10%~95%RH | 10%~95%RH | 10%~95%RH | 10%~95%RH |
| Storage & Application | ||||
| Storage temperature | Minus 40℃~85℃ | Minus 40℃~85℃ | Minus 40℃~85℃ | Minus 40℃~85℃ |
| Storage humidity | 30%~60%RH | 30%~60%RH | 30%~60%RH | 30%~60%RH |
| Application | For indoor use , for rental | |||
Download
Download:5.95,6.25,8.9,10.4mm.pdf
