Model:RH6 Series
Outdoor rental LED screens features
● 4500 to 7500 nits ultra high brightness
● 4000:1 ultra high contrast ratio
● High color and brightness uniformity
● Finest vivid picture, but eye-care
● 160(H)/120(V) degrees wide view angle,
● Front accessible cabinet, easy to maintain
● Ultra-quiet Fanless design, no noise,
● ultra thin die cast aluminum cabinet, 75mm thickness
● CE,FCC and Rosh certified, 10,000 hours lifetime
Features
Professional Outdoor Rental LED Displays Screens manufacturer factory
RH6 Series 640x640 ultra thin outdoor rental LED displays screens
Fultape indoor outdoor rental LED display is specially designed for event, stage, broadcast and entertainment use. It is made of die casting aluminum cabinet and high quality electronic parts. It can be used both outdoor and indoor, even under strong sunlight conditions. It enjoys lots of advantages: high brightness, high contrast ratio, high refresh rate, automatic brightness and color uniformity calibration and ultra-thin and light weight, only 75mm thickness and 7.8kg net weight, which make it become the best option among many rental LED displays in the world market.
We have been the leader of rental LED displays screens in the industry and will continue to develop, produce and supply highest quality rental LED display for professional visual application market home and abroad as what Fultape has been done. We use superior quality raw materials to produce each modules and each cabinet of indoor outdoor LED video wall displays screens. All Fultape rental LED display pass 48 to 72 hours burn-in test and 100% final strict test and inspection before shipping to ensure high quality of all Fultape rental LED displays, stable, reliable and durable.
Rental outdoor LED displays features
● 4500 to 7500 nits ultra high brightness
● 4000:1 ultra high contrast ratio
● High color and brightness uniformity
● Finest vivid picture, but eye-care when watching a long time
● 160(H)/120(V) degrees wide view angle,
● Front accessible cabinet, easy to maintain
● Ultra-quiet Fanless design, no noise,
● Advanced sophisticated structure design brings excellent ventilation
● ultra thin die cast aluminum cabinet, 75mm thickness
● CE,FCC and Rosh certified, 10,000 hours lifetime
Rental Outdoor LED displays technical specifications
Who we are?
Fultape Electronics Co., Limited has been specializing in manufacturing superior quality Outdoor indoor LED displays screens and outdoor led signs for many years. As one of leading exporter and wholesaler of Outdoor dip LED displays screens and Outdoor SMD LED displays screens, our LED video wall display screens cover a wide variety, including LED signs, Led message signs, Led displays, LED screens, electronic billboards, digital billboards, outdoor LED display screens and indoor LED display screens, LED video wall displays, pharmacy cross signs, large outdoor led video screens, led curtains displays for stages, concerts and building wall decoration.
Our Outdoor LED video wall displays screens are ideal for outdoor advertising, live events, stadium and shopping centers/shopping malls. They features high brightness, high contrast ratio, high refresh rate, high grey scale, Waterproof IP65 front and rear, sunlight readable/viewable , and 160 degrees wide view angle.
Our Outdoor indoor LED displays screens have been exported all over the world and installed worldwide by hundreds of our long term partners, distributors, wholesalers, integrators and installers.
Any enquires on our outdoor led video wall, outdoor led display screens, outdoor led signs, outdoor led banner signs, outdoor led message signs and outdoor digital billboard, just email us at overseas@fultaple.com. We will get back to you within 24 hours. For urgent order, contact us via skype, whatsapp, wechat and telephone.
Whatsapp/wechat: 0086 139 2377 0161 skype is fultape01. Direct line Telephone 0086 755 2350 0200
Specifications

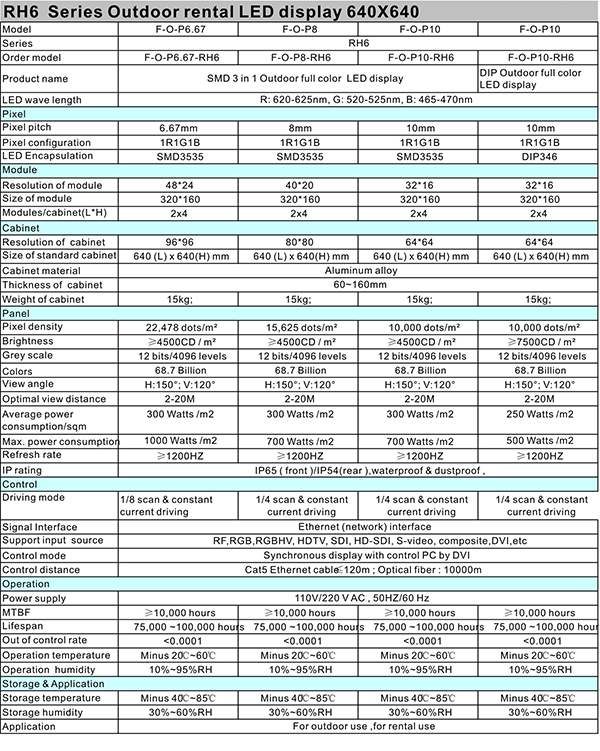

| Technical specifications | ||||
| RH6 Series Outdoor rental LED display 640X640 | ||||
| Model | F-O-P6.67 | F-O-P8 | F-O-P10 | F-O-P10 |
| Series | RH6 | |||
| Order model | F-O-P6.67-RH6 | F-O-P8-RH6 | F-O-P10-RH6 | F-O-P10-RH6 |
| Product name | SMD 3 in 1 Outdoor full color LED display | DIP Outdoor full color LED display | ||
| LED wave length | R: 620-625nm, G: 520-525nm, B: 465-470nm | |||
| Pixel | ||||
| Pixel pitch | 6.67mm | 8mm | 10mm | 10mm |
| Pixel configuration | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B |
| LED Encapsulation | SMD3535 | SMD3535 | SMD3535 | DIP346 |
| Module | ||||
| Resolution of module | 48*24 | 40*20 | 32*16 | 32*16 |
| Size of module | 320*160 | 320*160 | 320*160 | 320*160 |
| Modules/cabinet(L*H) | 2x4 | 2x4 | 2x4 | 2x4 |
| Cabinet | ||||
| Resolution of cabinet | 96*96 | 80*80 | 64*64 | 64*64 |
| Size of standard cabinet | 640 (L) x 640(H) mm | 640 (L) x 640(H) mm | 640 (L) x 640(H) mm | 640 (L) x 640(H) mm |
| Cabinet material | Aluminum alloy | |||
| Thickness of cabinet | 60~160mm | |||
| Weight of cabinet | 15kg; | 15kg; | 15kg; | 15kg; |
| Panel | ||||
| Pixel density | 22,478 dots/m² | 15,625 dots/m² | 10,000 dots/m² | 10,000 dots/m² |
| Brightness | ≥4500CD / m² | ≥4500CD / m² | ≥4500CD / m² | ≥7500CD / m² |
| Grey scale | 12 bits/4096 levels | 12 bits/4096 levels | 12 bits/4096 levels | 12 bits/4096 levels |
| Colors | 68.7 Billion | 68.7 Billion | 68.7 Billion | 68.7 Billion |
| View angle | H:150°; V:120° | H:150°; V:120° | H:150°; V:120° | H:150°; V:120° |
| Optimal view distance | 2-20M | 2-20M | 2-20M | 2-20M |
| Average power consumption/sqm | 300 Watts /m2 | 300 Watts /m2 | 300 Watts /m2 | 250 Watts /m2 |
| Max. power consumption | 1000 Watts /m2 | 700 Watts /m2 | 700 Watts /m2 | 500 Watts /m2 |
| Refresh rate | ≥1200HZ | ≥1200HZ | ≥1200HZ | ≥1200HZ |
| IP rating | IP65 ( front )/IP54(rear ),waterproof & dustproof , | |||
| Control | ||||
| Driving mode | 1/8 scan & constant current driving | 1/4 scan & constant current driving | 1/4 scan & constant current driving | 1/4 scan & constant current driving |
| Signal Interface | Ethernet (network) interface | |||
| Support input source | RF,RGB,RGBHV, HDTV, SDI, HD-SDI, S-video, composite,DVI,etc | |||
| Control mode | Synchronous display with control PC by DVI | |||
| Control distance | Cat5 Ethernet cable ≤120m ; Optical fiber : 10000m | |||
| Operation | ||||
| Power supply | 110V/220 V AC , 50HZ/60 Hz | |||
| MTBF | ≥10,000 hours | ≥10,000 hours | ≥10,000 hours | ≥10,000 hours |
| Lifespan | 75,000 ~100,000 hours | 75,000 ~100,000 hours | 75,000 ~100,000 hours | 75,000 ~100,000 hours |
| Out of control rate | <0.0001 | <0.0001 | <0.0001 | <0.0001 |
| Operation temperature | Minus 20℃~60℃ | Minus 20℃~60℃ | Minus 20℃~60℃ | Minus 20℃~60℃ |
| Operation humidity | 10%~95%RH | 10%~95%RH | 10%~95%RH | 10%~95%RH |
| Storage & Application | ||||
| Storage temperature | Minus 40℃~85℃ | Minus 40℃~85℃ | Minus 40℃~85℃ | Minus 40℃~85℃ |
| Storage humidity | 30%~60%RH | 30%~60%RH | 30%~60%RH | 30%~60%RH |
| Application | For outdoor use ,for rental use | |||
Download
Download:6.67,8,10mm.pdf
