Model:F-I-P1.92
LED screens features
● Amazing Ultra HD resolution,
● 5000:1 ultra high contrast ratio
● High color and brightness uniformity
● Finest vivid picture, but eye-care
● 160(H)/160(V) degrees wide view angle,
● 3840Hz ultra high refresh rate

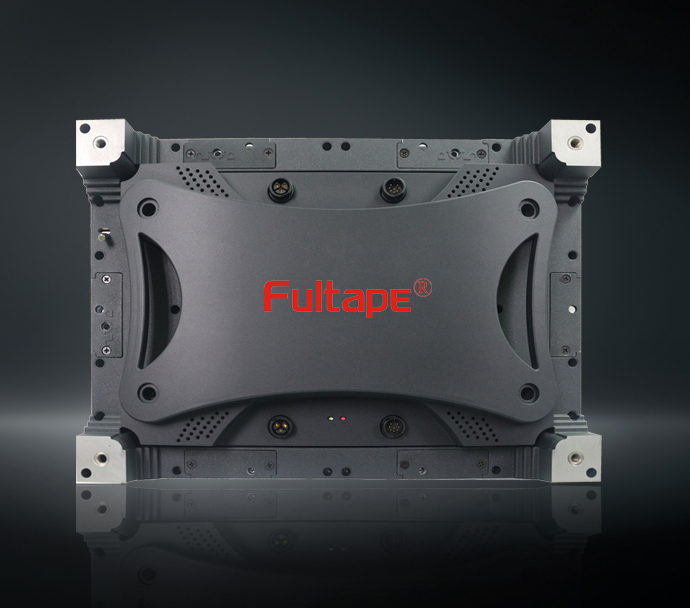

● Front accessible cabinet, easy maintenance
● ultra thin 66mm thickness
Features
Professional LED Displays Screens Turnkey Solution Provider for Audio visual Events

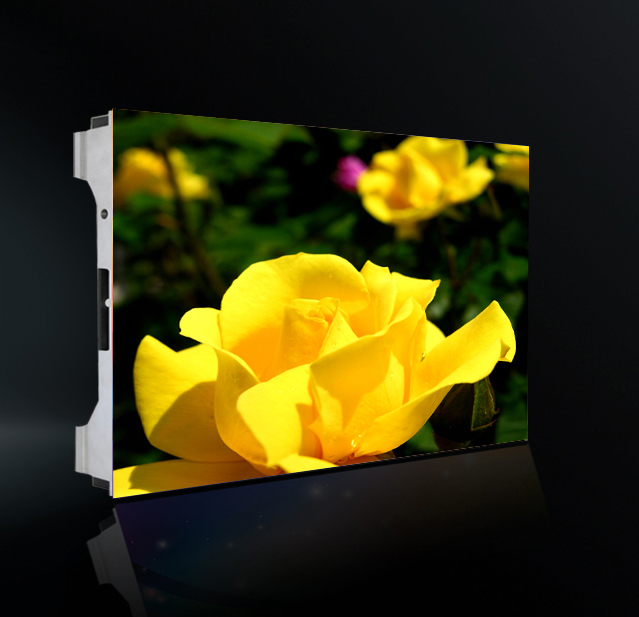

1.92 mm small pixel UHD LED screen
With the aid of our state-of-the art technology and highly technologically advanced and sophisticated machines and equipment, We manufacture and supply a full series of high quality small pixel ultra HD LED screens, including 1.2mmm 1.5mm, 1.6mm, 1.9mm,2.0mm and 2.5mm small pixel Zero Bezel seamless LED video wall display. Our small pixel UHD LED screen is highly on demand and popular around the world. Price of our commercial indoor outdoor LED display is extremely competitive. Welcome to join our long term LED display distributor plan.
Small pixel LED screen features
● Amazing Ultra HD resolution,
● 5000:1 ultra high contrast ratio
● High color and brightness uniformity
● Finest vivid picture, but eye-care when watching a long time
● 160(H)/160(V) degrees wide view angle,
● 3840Hz ultra high refresh rate to eliminate trailing
● 16 bits 65,535 gray levels bring more natural color
● Front accessible cabinet, easy maintenance
● ultra thin die cast aluminum cabinet, 66mm thickness
● CE,FCC and Rosh certified, 10,000 hours lifetime
Who we are?
Fultape Electronics Co., Limited is a leading dedicated LED displays screens and seamless video wall screens manufacturer in China, providing high performance indoor outdoor LED displays screens, led video wall rental, rental led displays screens, small pixel HD LED video wall screens, seamless LCD video wall and indoor outdoor digital signage for entertainment, media, indoor outdoor advertising, events, sports, stage performance, stadiums, museums and churches, etc...
We are not only a LED displays screens and seamless video wall screens manufacturer but also a led video wall and seamless LCD video wall screens solutions provider. If you are a led video wall distributor, wholesaler, system integrator , importer, OEMer, audio visual designer , AV installer, freelancer, just email us your audio visual projects in details, we will have them studied by our engineers and finalize you best solutions.
Our led video wall ,seamless LCD video wall screens and indoor outdoor digital signages have been installed all over the world by many our partners. All of them are CE,FCC and ROHS certified
and proved to be first class quality. If you are looking for high quality led video wall ,seamless LCD video wall screens and indoor outdoor digital signages to finish your projects, just contact our team for more technology details and best solution.
Fultape led video wall ,seamless LCD video wall screens and indoor outdoor digital signages can be searched using the following words: Las Vegas LED video walls, San Diego LED video wall rental, Los Angeles LED video wall sales, New York LED video wall for rent, Toronto rental LED displays screens, Mexico city seamless LED video walls rental and installation, Houston digital signage solutions, Detroit indoor outdoor digital signage, Chicago indoor outdoor digital billboards, Phoenix video walls, Dallas zero bezel video walls, Portland electronic boards, Orlando led message signs and Miami mobile LED video wall trucks.
Any enquires on our led video wall ,seamless LCD video wall screens and indoor outdoor digital signages, just email us at overseas@fultape.com. We will get back to you within 24 hours. For urgent order, contact us via skype, whatsapp, wechat and telephone.
Whatsapp/wechat: 0086 139 2377 0161 skype is fultape01. Direct line Telephone 0086 755 2350 0200
Specifications

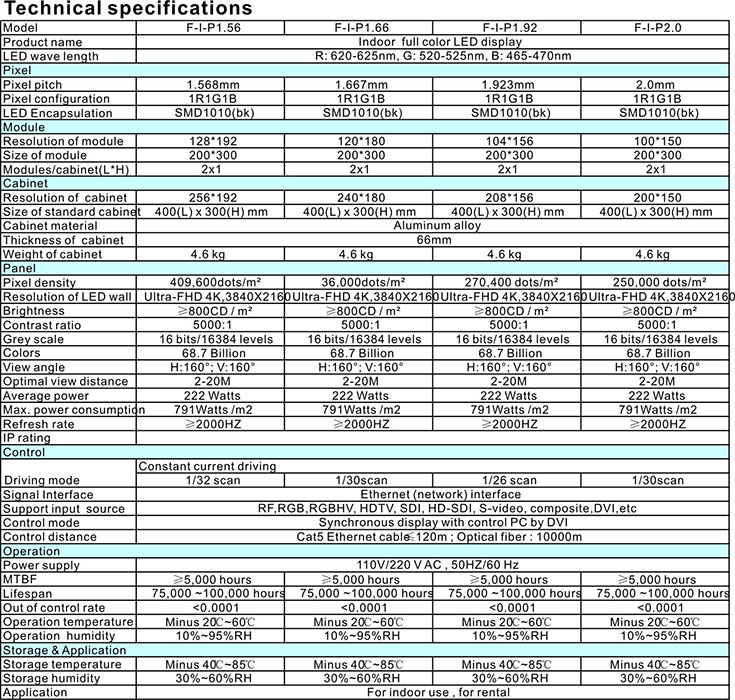

| Technical specifications | ||||
| Model | F-I-P1.56 | F-I-P1.66 | F-I-P1.92 | F-I-P2.0 |
| Product name | Indoor full color LED display | |||
| LED wave length | R: 620-625nm, G: 520-525nm, B: 465-470nm | |||
| Pixel | ||||
| Pixel pitch | 1.568mm | 1.667mm | 1.923mm | 2.0mm |
| Pixel configuration | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B |
| LED Encapsulation | SMD1010(bk) | SMD1010(bk) | SMD1010(bk) | SMD1010(bk) |
| Module | ||||
| Resolution of module | 128*192 | 120*180 | 104*156 | 100*150 |
| Size of module | 200*300 | 200*300 | 200*300 | 200*300 |
| Modules/cabinet(L*H) | 2x1 | 2x1 | 2x1 | 2x1 |
| Cabinet | ||||
| Resolution of cabinet | 256*192 | 240*180 | 208*156 | 200*150 |
| Size of standard cabinet | 400(L) x 300(H) mm | 400(L) x 300(H) mm | 400(L) x 300(H) mm | 400(L) x 300(H) mm |
| Cabinet material | Aluminum alloy | |||
| Thickness of cabinet | 66mm | |||
| Weight of cabinet | 4.6 kg | 4.6 kg | 4.6 kg | 4.6 kg |
| Panel | ||||
| Pixel density | 409,600dots/m² | 36,000dots/m² | 270,400 dots/m² | 250,000 dots/m² |
| Resolution of LED wall | Ultra-FHD 4K,3840X2160 | Ultra-FHD 4K,3840X2160 | Ultra-FHD 4K,3840X2160 | Ultra-FHD 4K,3840X2160 |
| Brightness (white balance) | ≥800CD / m² | ≥800CD / m² | ≥800CD / m² | ≥800CD / m² |
| Contrast ratio | 5000:1 | 5000:1 | 5000:1 | 5000:1 |
| Grey scale | 16 bits/16384 levels | 16 bits/16384 levels | 16 bits/16384 levels | 16 bits/16384 levels |
| Colors | 68.7 Billion | 68.7 Billion | 68.7 Billion | 68.7 Billion |
| View angle | H:160°; V:160° | H:160°; V:160° | H:160°; V:160° | H:160°; V:160° |
| Optimal view distance | 2-20M | 2-20M | 2-20M | 2-20M |
| Average power consumption/sqm | 222 Watts | 222 Watts | 222 Watts | 222 Watts |
| Max. power consumption | 791Watts /m2 | 791Watts /m2 | 791Watts /m2 | 791Watts /m2 |
| Refresh rate | ≥2000HZ | ≥2000HZ | ≥2000HZ | ≥2000HZ |
| IP rating | IP31 Waterproof & dustproof ( front and back ) | |||
| Control | ||||
Driving mode | Constant current driving | |||
| 1/32 scan | 1/30scan | 1/26 scan | 1/30scan | |
| Signal Interface | Ethernet (network) interface | |||
| Support input source | RF,RGB,RGBHV, HDTV, SDI, HD-SDI, S-video, composite,DVI,etc | |||
| Control mode | Synchronous display with control PC by DVI | |||
| Control distance | Cat5 Ethernet cable ≤120m ; Optical fiber : 10000m | |||
| Operation | ||||
| Power supply | 110V/220 V AC , 50HZ/60 Hz | |||
| MTBF | ≥5,000 hours | ≥5,000 hours | ≥5,000 hours | ≥5,000 hours |
| Lifespan | 75,000 ~100,000 hours | 75,000 ~100,000 hours | 75,000 ~100,000 hours | 75,000 ~100,000 hours |
| Out of control rate | <0.0001 | <0.0001 | <0.0001 | <0.0001 |
| Operation temperature | Minus 20℃~60℃ | Minus 20℃~60℃ | Minus 20℃~60℃ | Minus 20℃~60℃ |
| Operation humidity | 10%~95%RH | 10%~95%RH | 10%~95%RH | 10%~95%RH |
| Storage & Application | ||||
| Storage temperature | Minus 40℃~85℃ | Minus 40℃~85℃ | Minus 40℃~85℃ | Minus 40℃~85℃ |
| Storage humidity | 30%~60%RH | 30%~60%RH | 30%~60%RH | 30%~60%RH |
| Application | For indoor use , for rental | |||
Who we are?
Fultape Electronics Co., Limited is a leading dedicated LED displays screens and seamless video wall screens manufacturer in China, providing high performance indoor outdoor LED displays screens, led video wall rental, rental led displays screens, small pixel HD LED video wall screens, seamless LCD video wall and indoor outdoor digital signage for entertainment, media, indoor outdoor advertising, events, sports, stage performance, stadiums, museums and churches, etc...
We are not only a LED displays screens and seamless video wall screens manufacturer but also a led video wall and seamless LCD video wall screens solutions provider. If you are a led video wall distributor, wholesaler, system integrator , importer, OEMer, audio visual designer , AV installer, freelancer, just email us your audio visual projects in details, we will have them studied by our engineers and finalize you best solutions.
Our led video wall ,seamless LCD video wall screens and indoor outdoor digital signages have been installed all over the world by many our partners. All of them are CE,FCC and ROHS certified
and proved to be first class quality. If you are looking for high quality led video wall ,seamless LCD video wall screens and indoor outdoor digital signages to finish your projects, just contact our team for more technology details and best solution.
Fultape led video wall ,seamless LCD video wall screens and indoor outdoor digital signages can be searched using the following words: Las Vegas LED video walls, San Diego LED video wall rental, Los Angeles LED video wall sales, New York LED video wall for rent, Toronto rental LED displays screens, Mexico city seamless LED video walls rental and installation, Houston digital signage solutions, Detroit indoor outdoor digital signage, Chicago indoor outdoor digital billboards, Phoenix video walls, Dallas zero bezel video walls, Portland electronic boards, Orlando led message signs and Miami mobile LED video wall trucks.
Any enquires on our led video wall ,seamless LCD video wall screens and indoor outdoor digital signages, just email us at overseas@fultape.com. We will get back to you within 24 hours. For urgent order, contact us via skype, whatsapp, wechat and telephone.
Whatsapp/wechat: 0086 139 2377 0161 skype is fultape01. Direct line Telephone 0086 755 2350 0200
