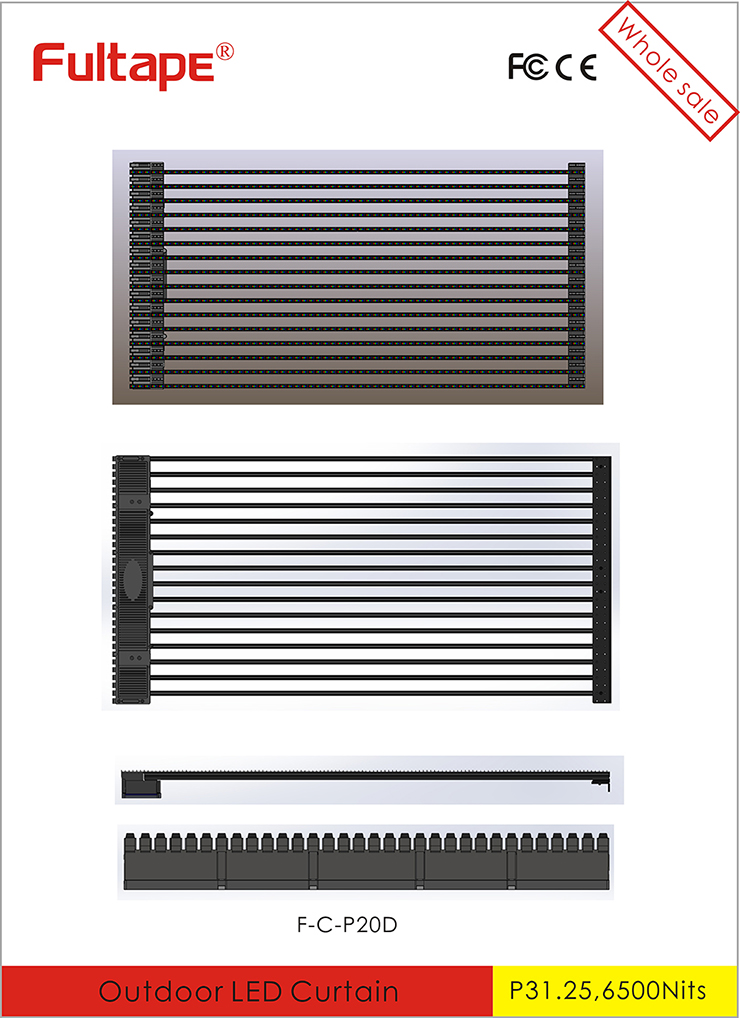

15.625*31.25mm(V*H)  DIP Outdoor Transparent LED Curtain Display,  5500~7500nits







Description



This full color LED curtain is made of DIP LED modules and aluminum alloy cabinet. It is mesh designed. Its’ most significant advantages are as follow: extremely perfect decoration effect of stage background, ultra-high brightness, super light weight and highly handy to carry and transfer, waterproof, high transparency, easy to be assembled, installed and dis-assembled without any tool, simple and convenient wiring, and rotary assembling locks on cabinets for fast and safe combination and installation.





Key features



a)  DIP LED

b)  perfect decoration effect of stage background,

c)  ultra-thin, super light weight and highly handy to carry, cabinet weight is only

12.2kg and thickness is only 60mm.

d)  front and back IP68 waterproof and dustproof,

e)  48% high transparency,

f)   simple and convenient wiring,

g)   easy locking structure, no need tools for set-up,and

h)  strong structure for rigging.





Related important data



Brightness: 5500~7500CD / m²

Thickness of cabinet: 60mm

Weight of cabinet: 12.2kg

Transparency: 48~70%





Specifications of Transparent LED Display









Application  of Transparent LED Display



This LED screen can be used in both outdoor and indoor environments. It is especially suitable for decorating stage background of performance, concert and event in many places like hotels, bars, night clubs, schools, universities, outdoor square or open area etc.

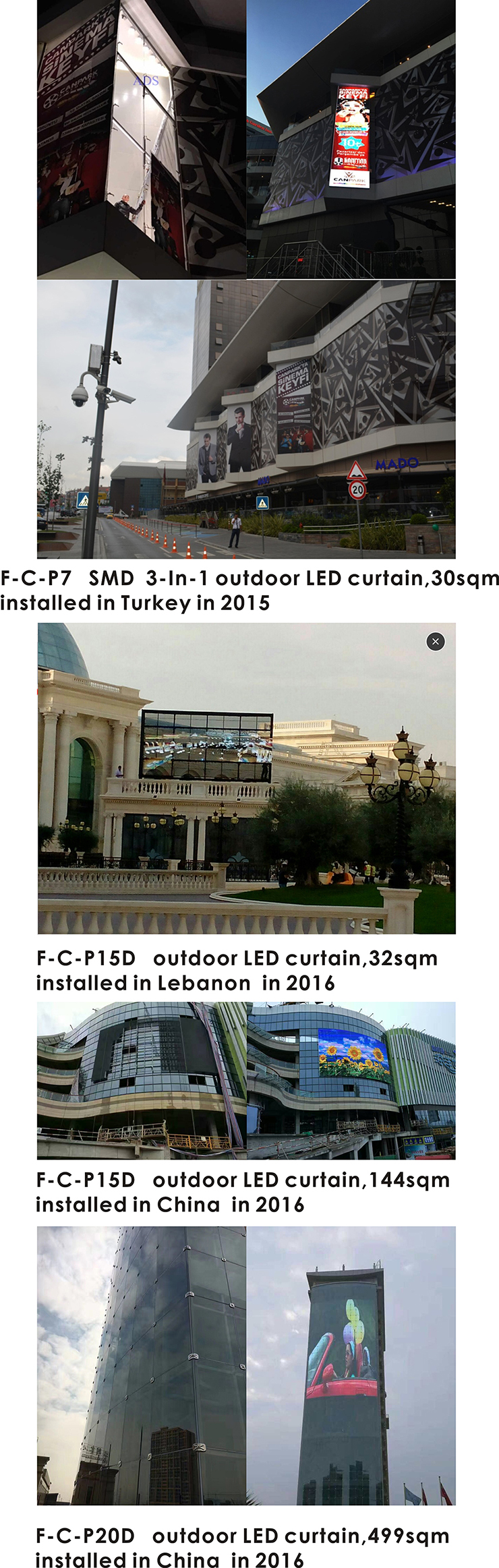

Project cases  of Transparent LED Display

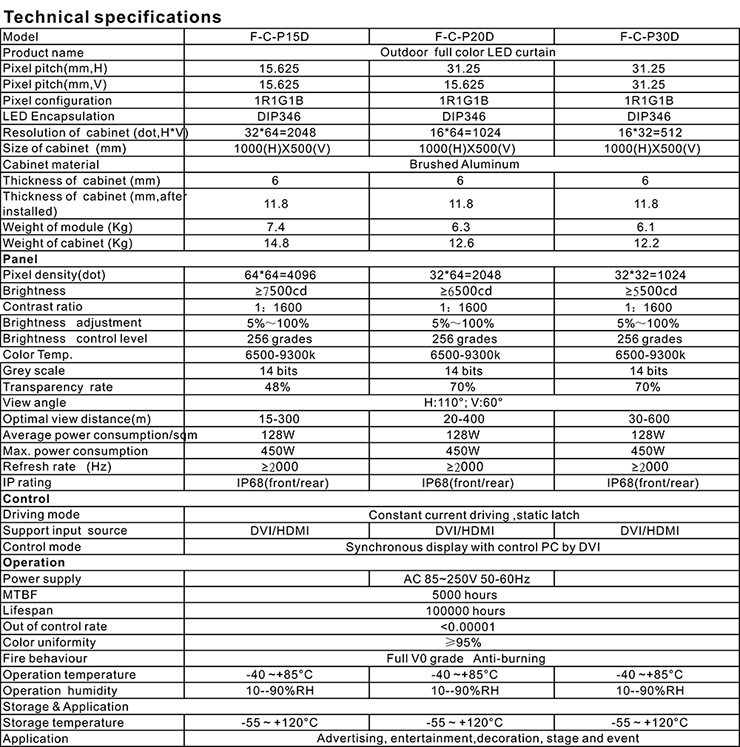

Technical specifications	Outdoor Transparent LED Curtain Display 15.625*31.25mm(V*H)
Model	F-C-P15D	F-C-P20D	F-C-P30D
Product name	Outdoor  full color LED curtain
Pixel pitch(mm,H)	15.625	31.25	31.25
Pixel pitch(mm,V)	15.625	15.625	31.25
Pixel configuration	1R1G1B	1R1G1B	1R1G1B
LED Encapsulation	DIP346	DIP346	DIP346
Resolution of  cabinet (dot,H*V)	32*64=2048	16*64=1024	16*32=512
Size of cabinet  (mm)	1000(H)X500(V)	1000(H)X500(V)	1000(H)X500(V)
Cabinet material	Brushed Aluminum
Thickness of  cabinet (mm)	6	6	6
Thickness of  cabinet (mm,after installed)	11.8	11.8	11.8
Weight of module (Kg)	7.4	6.3	6.1
Weight of cabinet (Kg)	14.8	12.6	12.2
Panel
Pixel density(dot)	64*64=4096	32*64=2048	32*32=1024
Brightness	≥7500cd	≥6500cd	≥5500cd
Contrast ratio	1：1600	1：1600	1：1600
Brightness   adjustment	5%～100%	5%～100%	5%～100%
Brightness   control level	256 grades	256 grades	256 grades
Color Temp.	6500-9300k	6500-9300k	6500-9300k
Grey scale	14 bits	14 bits	14 bits
Transparency  rate	48%	70%	70%
View angle	H:110°; V:60°
Optimal view distance(m)	15-300	20-400	30-600
Average power consumption/sqm	128W	128W	128W
Max. power consumption	450W	450W	450W
Refresh rate   (Hz)	≥2000	≥2000	≥2000
IP rating	IP68(front/rear)	IP68(front/rear)	IP68(front/rear)
Control
Driving mode	Constant current driving ,static latch
Support input  source	DVI/HDMI	DVI/HDMI	DVI/HDMI
Control mode	Synchronous display with control PC by DVI
Operation
Power supply		AC 85~250V 50-60Hz
MTBF	5000 hours
Lifespan	100000 hours
Out of control rate	<0.00001
Color uniformity	≥95%
Fire behaviour	Full V0 grade 　Anti-burning
Operation temperature	-40 ~+85°C	-40 ~+85°C	-40 ~+85°C
Operation  humidity	10--90%RH	10--90%RH	10--90%RH
Storage & Application
Storage temperature	-55 ~ +120°C	-55 ~ +120°C	-55 ~ +120°C
Application	Advertising, entertainment,decoration, stage and event

Download:15.625*31.25.pdf
