15.625mm Outdoor Transparent LED Curtain Display, 6000nits









Description

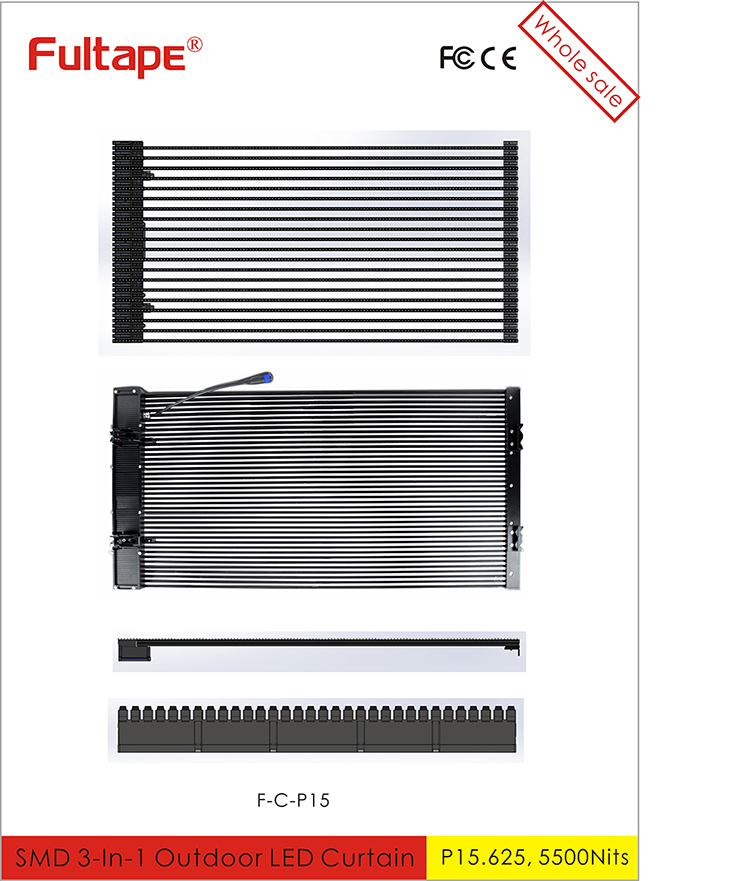

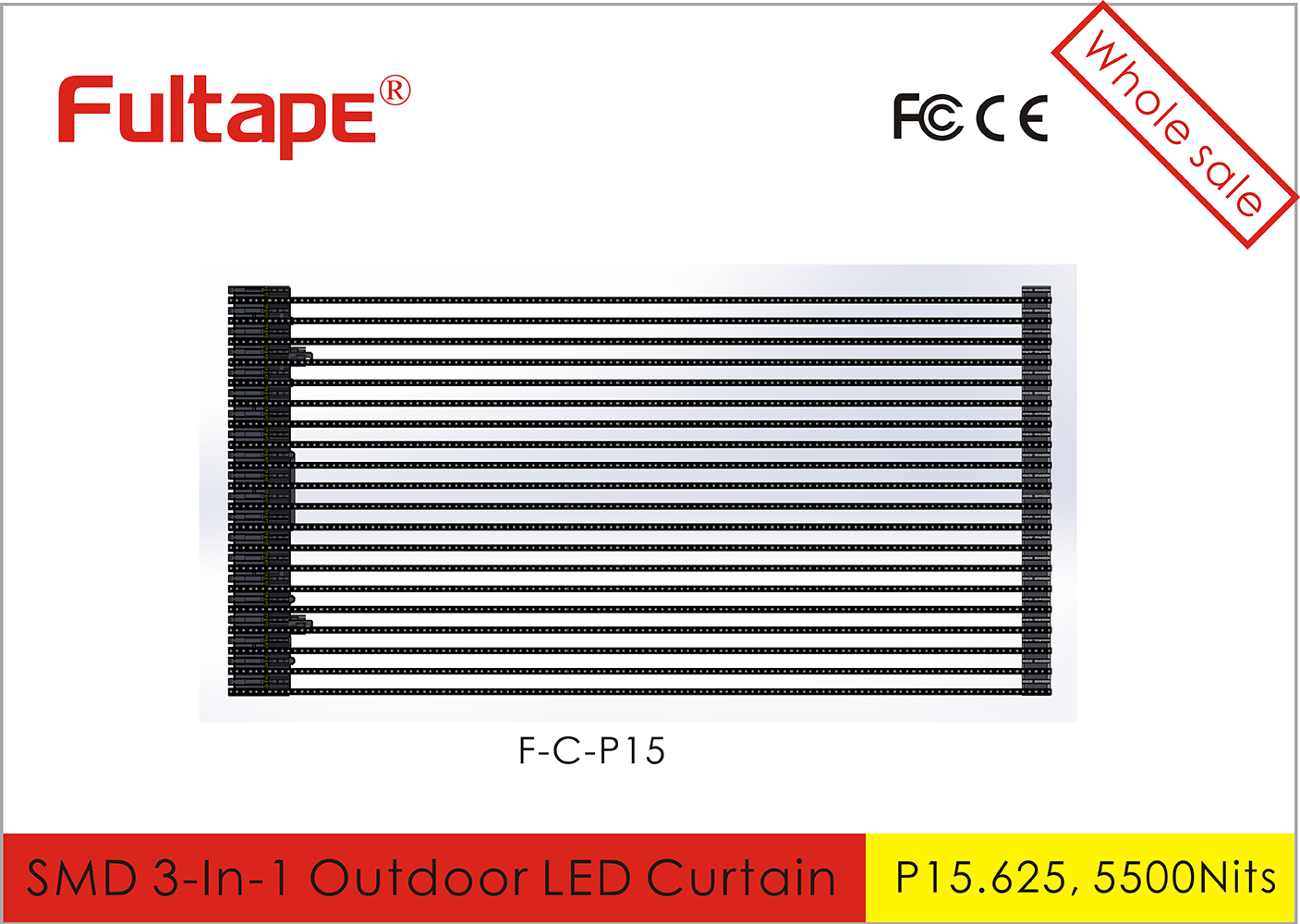

15.625mm Outdoor Transparent LED Curtain Display



This full color LED curtain is made of SMD 3 in 1 LED modules and aluminum alloy cabinet. It is mesh designed. Its’ most significant advantages are as follow: extremely perfect decoration effect of stage background, ultra-thin, super light weight and highly handy to carry and transfer, waterproof, high transparency, easy to be assembled, installed and dis-assembled without any tool, simple and convenient wiring, rotary assembling locks on cabinets for fast and safe combination and installation and strong structure for rigging.







Key features



a)  RGB 3-in-1 SMD LED

b)  perfect decoration effect of stage background,

c)  ultra-thin, super light weight and highly handy to carry, cabinet weight is only

15.0kg and thickness is only 60mm.

d)  front and back IP67 waterproof and dustproof,

e)  50% high transparency,

f)   simple and convenient wiring,

g)   easy locking structure, no need tools for set-up,and

h)  strong structure for rigging.





Related important data



Brightness: 5500~6000CD / m²

Thickness of cabinet: 60mm

Weight of cabinet: 15.0kg





Specifications of Transparent LED Display







Application of Transparent LED Display



 This LED screen can be used in both outdoor and indoor environments. It is especially suitable for decorating stage background of performance, concert and event in many places like hotels, bars, night clubs, schools, universities, outdoor square or open area etc.

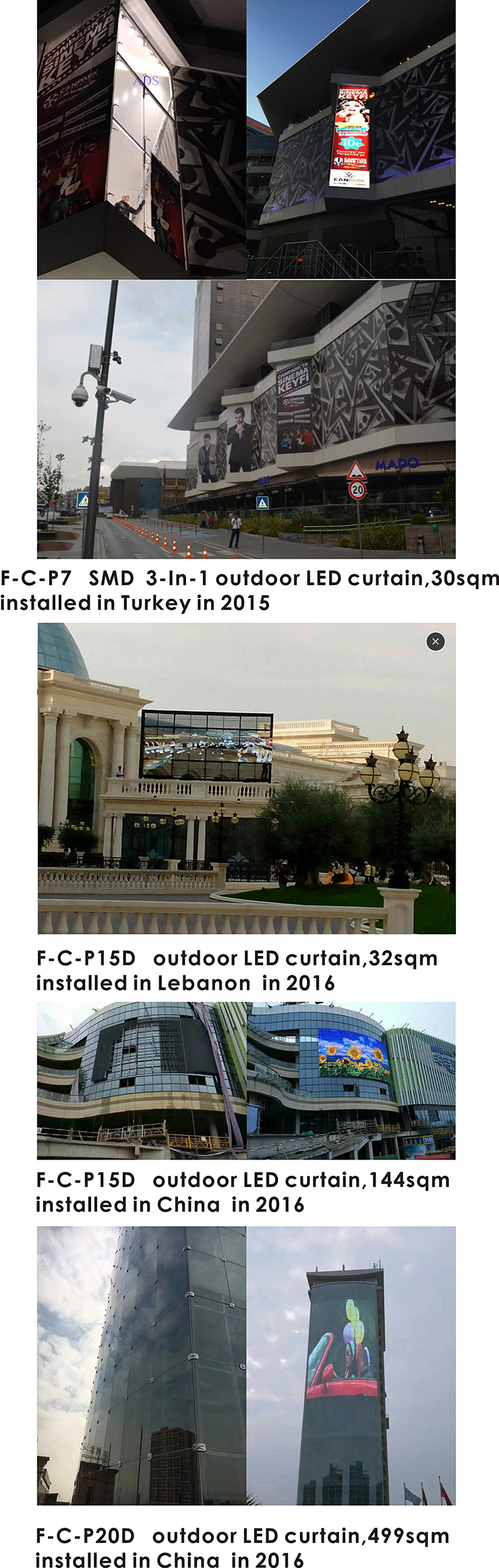

  Project Cases of Transparent LED Display

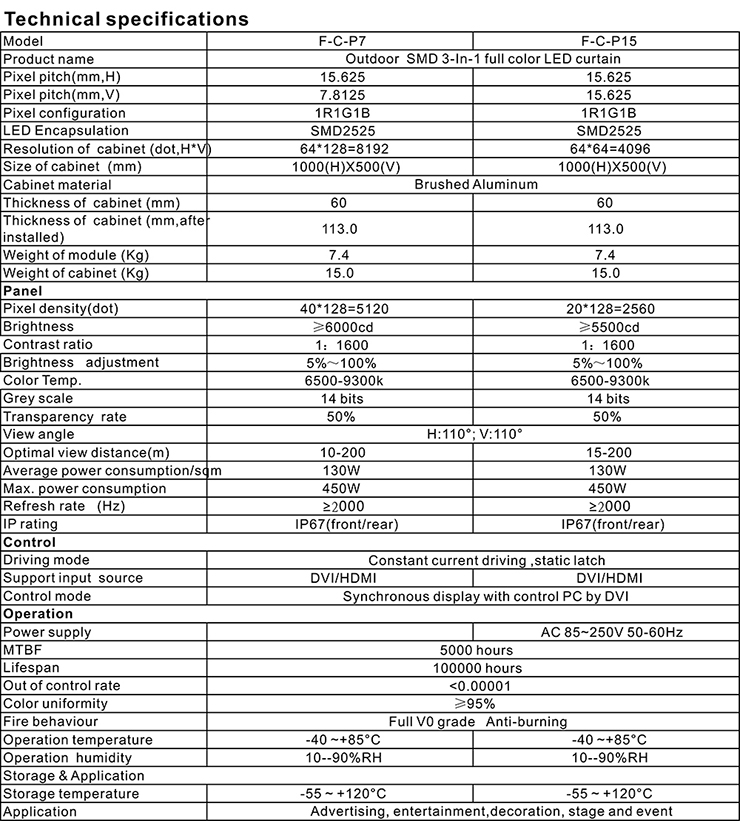

Technical specifications	15.625mm Outdoor Transparent LED Curtain Display
Model	F-C-P7	F-C-P15
Product name	Outdoor  SMD 3-In-1 full color LED curtain
Pixel pitch(mm,H)	15.625	15.625
Pixel pitch(mm,V)	7.8125	15.625
Pixel configuration	1R1G1B	1R1G1B
LED Encapsulation	SMD2525	SMD2525
Resolution of  cabinet (dot,H*V)	64*128=8192	64*64=4096
Size of cabinet  (mm)	1000(H)X500(V)	1000(H)X500(V)
Cabinet material	Brushed Aluminum
Thickness of  cabinet (mm)	60	60
Thickness of  cabinet (mm,after installed)	113.0	113.0
Weight of module (Kg)	7.4	7.4
Weight of cabinet (Kg)	15.0	15.0
Panel
Pixel density(dot)	40*128=5120	20*128=2560
Brightness	≥6000cd	≥5500cd
Contrast ratio	1：1600	1：1600
Brightness   adjustment	5%～100%	5%～100%
Color Temp.	6500-9300k	6500-9300k
Grey scale	14 bits	14 bits
Transparency  rate	50%	50%
View angle	H:110°; V:110°
Optimal view distance(m)	10-200	15-200
Average power consumption/sqm	130W	130W
Max. power consumption	450W	450W
Refresh rate   (Hz)	≥2000	≥2000
IP rating	IP67(front/rear)	IP67(front/rear)
Control
Driving mode	Constant current driving ,static latch
Support input  source	DVI/HDMI	DVI/HDMI
Control mode	Synchronous display with control PC by DVI
Operation
Power supply		AC 85~250V 50-60Hz
MTBF	5000 hours
Lifespan	100000 hours
Out of control rate	<0.00001
Color uniformity	≥95%
Fire behaviour	Full V0 grade 　Anti-burning
Operation temperature	-40 ~+85°C	-40 ~+85°C
Operation  humidity	10--90%RH	10--90%RH
Storage & Application
Storage temperature	-55 ~ +120°C	-55 ~ +120°C
Application	Advertising, entertainment,decoration, stage and event

Download:15.625.pdf
