Model:F-O-P16 (Stadium)

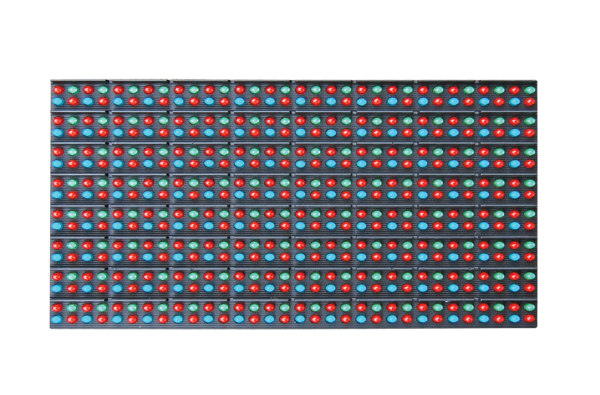

P16 Stadium LED display
Model: F-O-P16
Pixel pitch: 16mm
Pixel configuration: 2R1G1B
LED type: DIP546
Brightness: ≥8000CD / m²
Cabinet thickness: 180mm
Weight of cabinet: 50kg
Application
For stadium perimeter and video wall use
Features
Features
·Ultra-High brightness,
·Anti-glare mask, high contrast ratio,
·Fresh and uniform color, clear and vivid image
·Low power consumption and high energy-saving
·Simple wiring, fast installation
·Durable, high reliability & stability
Specifications
| Technical specifications | |||||
| Model | Model | F-O-P10◆ | F-O-P12 | F-O-P16 | F-O-P20 |
| Pixel | Pixel pitch | 10mm | 12mm | 16mm | 20mm |
| Pixel configuration | 1R1G1B | 1R1G1B | 2R1G1B | 2R1G1B | |
| LED Encapsulation | DIP346 | DIP346 | DIP546 | DIP346 | |
| Cabinet | Resolution of cabinet | 96*96 | 64*64 | 64*48 | 64*48 |
| Size of cabinet | 960x 960/640x640mm | 768(L) x 768(H) mm | 1280 (L) x 960(H) mm | 1280 (L) x 960(H) mm | |
| Cabinet material | Al. alloy(640*640) or steel | steel | |||
| Cabinet thickness(mm) | Al:130; steel:180 | 180 | |||
| Weight of cabinet | Al:18kg; steel:55kg | 55kg | 50kg | 70kg | |
| Panel | Brightness | ≥7500CD / m² | ≥7500CD / m² | ≥8000CD / m² | ≥7000CD / m² |
| Grey scale | 12 bits/4096 levels | 12 bits/4096 levels | 12 bits/4096 levels | 12 bits/4096 levels | |
| Colors | 68.7 Billion | 68.7 Billion | 68.7 Billion | 68.7 Billion | |
| View angle | H:100°; V:45° | H:100°; V:45° | H:100°; V:45° | H:100°; V:45° | |
| Power consumption/sqm | Avg.:600W Max.:1000W |
Avg.:500W Max.:700W |
Avg.:400W Max.:900W |
Avg.:300W Max.:800W |
|
| Refresh rate | ≥1800HZ | ≥1800HZ | ≥3000HZ | ≥3000HZ | |
| IP rating(front/rear) | IP65/IP65 |
||||
| Control | Support input source | RF,RGB,RGBHV, HDTV, SDI, HD-SDI, S-video, composite,DVI,etc | |||
| Control distance | Cat5 Ethernet cable ≤120m ; Optical fiber : 10000m | ||||
| Operation | Power supply | 110V/220 V AC , 50HZ/60 Hz | |||
| Operation temperature | Minus 20℃~60℃ | Minus 20℃~60℃ | Minus 20℃~60℃ | Minus 20℃~60℃ | |
