Model:F-I-P5.33

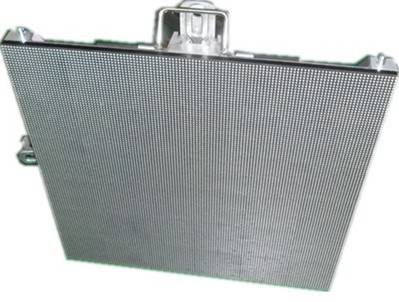

P5.33 Indoor LED display for rental
Model: F-I-P5.33
Pixel pitch : 5.33mm
Pixel configuration: 1R1G1B
LED type: SMD3528
Brightness: ≥1800CD / m²
Cabinet thickness: 60mm
Weight of cabinet: 11kg
Application
Stadium, airport, shopping mall, etc…
Features
Features
·RGB SMD 3-in-1 LEDs
·High brightness, able to work in bright environment
·Fresh and uniform color, clear and vivid image

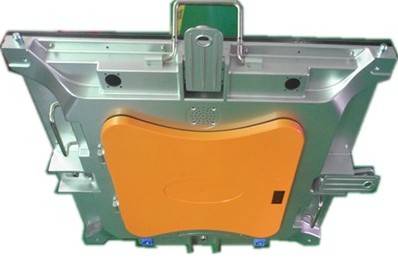

·Aluminum alloy cabinet,
·Ultra-thin, 60mm thickness,
·Super light weight, 11Kg,
·Low power consumption and high energy-saving
·Simple wiring, fast installation
·Durable, high reliability & stability
Specifications
| Technical specifications | |||
| Model | F-I-P4.8 | F-I-P5.33 | F-I-P6.94 |
| Product name | SMD 3in1 Indoor full color LED display for rental | ||
| LED wave length | R: 620-625nm, G: 520-525nm, B: 465-470nm | ||
| Pixel | |||
| Pixel pitch | 4.8mm | 5.33mm | 6.94mm |
| Pixel configuration | 1R1G1B | 1R1G1B | 1R1G1B |
| LED Encapsulation | SMD3528 | SMD3528 | SMD3528 |
| Module | |||
| Resolution of module | 60*60 | 54*54 | 72*36 |
| Size of module | 288*288 | 288*288 | 500*250 |
| Cabinet | |||
| Resolution of cabinet | 120*120 | 108*108 | 72*72 |
| Size of cabinet | 576(L) x 576(H) mm | 576(L) x 576(H) mm | 500(L) x 500(H) mm |
| Cabinet material | Aluminum alloy | ||
| Thickness of cabinet | 110mm | 60mm | |
| Weight of cabinet | 11kg | 11kg | 8kg |
| Panel | |||
| Pixel density | 43,402dots/m² | 35,200 dots/m² | 20,736 dots/m² |
| Brightness | ≥2000CD / m² | ≥1800CD / m² | ≥1500CD / m² |
| Grey scale | 12 bits/4096 levels | 12 bits/4096 levels | 12 bits/4096 levels |
| Colors | 68.7 Billion | 68.7 Billion | 68.7 Billion |
| View angle | H:150°; V:120° | H:150°; V:120° | H:150°; V:120° |
| Optimal view distance | 3-38M | 4-38M | 5-38M |
| Average power consumption/sqm | 600 Watts | 400 Watts | 300 Watts |
| Max. power consumption | 1600 Watts /m2 | 1200 Watts /m2 | 900 Watts /m2 |
| Refresh rate | ≥1200HZ | ≥1200HZ | ≥1200HZ |
| Control | |||
| Driving mode | 1/10 scan & constant current driving | 1/9 scan & constant current driving | |
| Signal Interface | Ethernet (network) interface | ||
| Support input source | RF,RGB,RGBHV, HDTV, SDI, HD-SDI, S-video, composite,DVI,etc | ||
| Control mode | Synchronous display with control PC by DVI | ||
| Control distance | Cat5 Ethernet cable ≤120m ; Optical fiber : 10000m | ||
| Operation | |||
| Power supply | 110V/220 V AC , 50HZ/60 Hz | ||
| MTBF | ≥5,000 hours | ≥5,000 hours | ≥5,000 hours |
| Lifespan | 75,000 ~100,000 hours | 75,000 ~100,000 hours | 75,000 ~100,000 hours |
| Out of control rate | <0.0001 | <0.0001 | <0.0001 |
| Operation temperature | Minus 20℃~60℃ | Minus 20℃~60℃ | Minus 20℃~60℃ |
| Operation humidity | 10%~95%RH | 10%~95%RH | 10%~95%RH |
| Storage & Application | |||
| Storage temperature | Minus 40℃~85℃ | Minus 40℃~85℃ | Minus 40℃~85℃ |
| Storage humidity | 30%~60%RH | 30%~60%RH | 30%~60%RH |
| Application | For indoor use , for rental | ||
