Model:F-C-P10

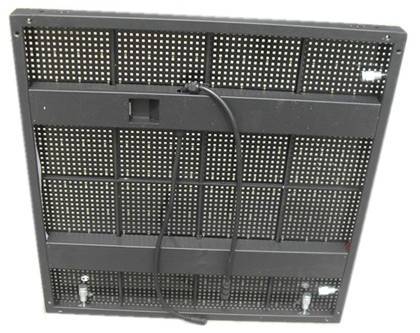

P10 indoor mesh LED curtain display
Model: F-C-P10
Brightness: ≥1200CD / m²
Thickness of cabinet: 50mm
Weight of cabinet: 13kg
Transparency: 20%
Features
Indoor full color LED curtain display
Summary
a) RGB 3-in-1 SMD LED
b) perfect decoration effect of stage background,
c) ultra-thin, super light weight and highly handy to carry, cabinet weight is only 13kg and thickness is only 50mm.
d) 20% high transparency,
e) simple and convenient wiring,
f) with easy locking system, no need tools for set-up, and
g) with strong rigging structure.
Features in details
This full color LED curtain is made of SMD 3 in 1 LED modules and aluminum alloy cabinet. It is mesh designed. Its’ most significant advantages are as follow: extremely perfect decoration effect of stage background, ultra-thin, super light weight and highly handy to carry and transfer, high transparency, easy to be assembled, installed and dis-assembled without any tool, simple and convenient wiring, rotary assembling locks on cabinets for fast and safe combination and installation and strong structure for rigging.
Application
This LED screen can be used indoor. It is especially suitable for decorating stage background of performance, concert and event in many places like hotels, bars, night clubs, schools and universities, etc.
Specifications
Technical specifications | |
Model | F-C-P10 |
Product name | SMD 3in1 indoor full color LED curtain |
LED wave length | R: 620-625nm, G: 520-525nm, B: 465-470nm |
Pixel | |
Pixel pitch | 10mm |
Pixel configuration | 1R1G1B |
LED Encapsulation | SMD3528 |
Module | |
Resolution of module | 32*32 |
Size of module | 320*320 |
Cabinet | |
Resolution of cabinet | 64*64 |
Size of standard cabinet | 640(L) x 640(H) mm |
Cabinet material | Aluminum |
Thickness of cabinet | 50mm |
Weight of cabinet (Kg) | 13 |
Easy locking system | Yes |
Strong rigging structure | Yes |
Panel | |
Pixel density | 10,000 dots/m² |
Brightness | ≥1000CD / m² |
Transparency rate | 20% |
View angle | H:150°; V:120° |
Optimal view distance | 10-50M |
Average power consumption/sqm | 150 Watts |
Max. power consumption | 500 Watts /m2 |
Refresh rate | 1200HZ |
Control | |
Driving mode | Constant current driving |
1/8 scan | |
Signal Interface | Ethernet (network) interface |
Support input source | RF,RGB,RGBHV, HDTV, SDI, HD-SDI, S-video, composite,DVI,etc |
Control mode | Synchronous display with control PC by DVI |
Control distance | Cat5 Ethernet cable ≤120m ; Optical fiber : 10000m |
Operation | |
Power supply | AC 220V±15% 50HZ or 60HZ |
MTBF | ≥5,000 hours |
Lifespan | 75,000 ~100,000 hours |
Out of control rate | <0.0001 |
Operation temperature | Minus 20℃~60℃ |
Operation humidity | 10%~95%RH |
Storage & application | |
Storage temperature | Minus 40℃~85℃ |
Storage humidity | 30%~60%RH |
Application | For indoor use, for rental |
